Metal detectors have constituted a cornerstone technology in a multitude of fields for decades, including archaeology, landmine clearance, treasure hunting, and security applications. In recent years, the integration of metal detection technology with unmanned aerial vehicles (UAVs), commonly known as drones, has opened new possibilities for remote and efficient metal detection.

Alongside innovations in metal detection, Sairone has emerged as a cutting-edge platform revolutionizing variety of industries such as manufacturing and agriculture. Developed by Saiwa, Sairone utilizes artificial intelligence and machine learning to optimize a wide array of operations and processes and to process images captured by drones, optimizing the analysis and interpretation of data. By providing high-resolution, rapid, and scalable insights, Sairone significantly boosts the efficiency and accuracy of drone-based metal detection.

This article explores the principles behind drone metal detectors, examines the key components of such systems, and analyzes their diverse applications across various sectors. Additionally, it will analyze the advantages and limitations of drone-based metal detection compared to traditional methods.

Technology Behind Drone Metal Detectors

Drone metal detectors integrate the established principles of metal detection with the versatility and maneuverability of drone technology, thereby combining the two fields into a single, innovative system. The following is a detailed examination of the fundamental principles:

Metal detection principles

The operation of metal detectors is based on the principle of electromagnetic induction. A transmitter coil, located within the detector, generates a primary electromagnetic field. When this field encounters a conductive object, such as metal, it induces eddy currents within the metal object. These eddy currents, in turn, generate a secondary electromagnetic field that is in opposition to the original field. The metal detector’s receiver coil detects this secondary field, and the instrument subsequently analyzes its properties in order to identify the presence of metal and potentially ascertain its type and size.

Drone technology integration

The use of drones as a mobile platform for carrying metal detection sensors allows for the rapid and efficient surveying of large areas. The metal detector sensor is typically mounted on the underside of the drone, thereby ensuring optimal signal transmission and reception towards the ground. The drone’s flight path is controlled by a pilot or a pre-programmed flight plan, which allows for systematic coverage of the target area.

Sensor types and capabilities

There are various types of metal detection sensors used in drone-based systems, each with its own advantages and limitations:

• Induction loop metal detectors (VLF): These are the most common type used in drone applications. They operate at very low frequencies (VLF) and are effective in detecting both ferrous (iron-containing) and non-ferrous metals at shallow depths.
• Pulse induction (PI) metal detectors: These offer greater depth penetration compared to VLF detectors and can be more effective in areas with high ground mineralization. However, they are typically larger and heavier, impacting drone payload capacity.
• Magnetometers: These sensors detect variations in the Earth’s magnetic field caused by the presence of ferrous metals. They are not as widely used in drone applications due to their limited ability to differentiate between different types of metal and susceptibility to interference from natural magnetic anomalies.

Components of Drone Metal Detection Systems

A functional drone metal detection system comprises several key components working in concert:

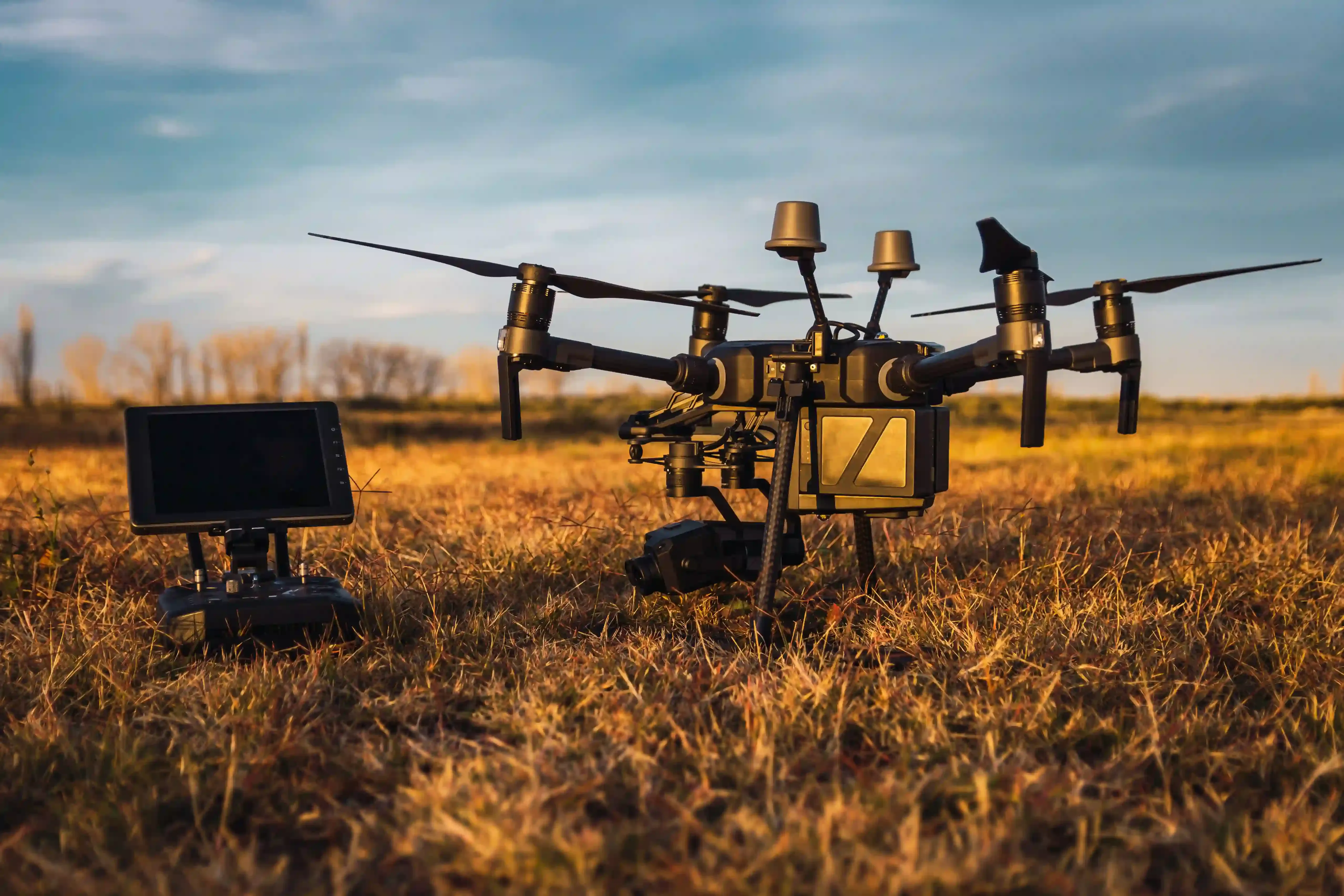

Drone platform

The selection of an appropriate drone platform is of paramount importance in determining the efficacy and efficiency of a metal detection mission. It is essential to consider the payload capacity of the drone, which determines the amount of equipment that can be carried, including the metal detector sensor. With Sairone, from Saiwa, drones equipped with metal detectors can benefit from advanced image processing techniques that enhance the identification and mapping of metal objects. This integration allows for more precise localization of targets, improved discrimination between different types of metals, and enhanced visualization of detection results.

 Additionally, the flight time is a crucial factor, as it determines the duration of the mission and the area that can be covered. Finally, flight stability is a vital aspect, as it ensures the accuracy of the sensor readings. Multicopter drones are a popular choice due to their maneuverability and ability to take off and land vertically.

Metal detection sensors

As previously stated, the specific type of metal detection sensor selected affects the system’s detection capabilities (depth, metal type) and overall weight. It is essential to strike a balance between the operating frequency, sensor size, and weight of the metal detection system with the drone’s payload capacity.

GPS and navigation systems

A Global Navigation Satellite System (GPS) receiver provides the drone with its position, thereby enabling the precise planning and execution of flight paths. In certain instances, supplementary navigation systems, such as inertial measurement units (IMUs), may be employed to augment flight stability and data georeferencing.

Data processing units

The data obtained by the metal detector sensor must be processed and analyzed in order to identify and locate potential metal targets. Onboard data processing units or ground-based control stations may be employed for the purposes of real-time data visualization and anomaly detection.

Read Also: AI-Based Drone Operation| AI in Drones use cases

Types of Drone Metal Detectors

Drone metal detectors can be categorized based on their operating principles and intended applications:

• Magnetometer-based drone metal detectors: These are primarily used for detecting ferrous metals (iron and iron alloys) and are less effective for non-ferrous metals like gold, silver, or copper.
• Induction loop (VLF) drone metal detectors: These are the most widely used type, offering good detection capabilities for both ferrous and non-ferrous metals at shallow depths. They are suitable for various applications, such as archaeological surveys or landmine detection.
• Pulse induction (PI) drone metal detectors: These offer greater depth penetration compared to VLF detectors and are better suited for applications like deep treasure hunting or geological surveys. However, their larger size and weight may limit their use on smaller drones.

Detection Capabilities of Drone Metal Detectors

The detection capabilities of drone metal detectors depend on several factors:

Ferrous metals

The majority of drone metal detectors are capable of effectively detecting ferrous metals (specifically, iron and iron alloys) at varying depths, contingent on the specific sensor type and operating frequency. VLF detectors are appropriate for the shallow detection of ferrous objects, including buried pipes, unexploded ordnance, and archaeological artifacts. PI detectors are capable of reaching greater depths, which makes them a valuable tool for deep treasure hunting or geological surveys targeting iron ore deposits.

Non-ferrous metals

The detection of non-ferrous metals (e.g., gold, silver, copper) with drone metal detectors is typically more challenging than the detection of ferrous metals. The efficacy of this process is contingent upon the specific metal type, its dimensions, and the operational frequency of the sensor. VLF detectors are capable of detecting larger non-ferrous objects at shallow depths, whereas PI detectors may offer superior performance for larger non-ferrous objects buried at greater depths.

Depth penetration

The depth at which a drone metal detector can locate a metal object is influenced by several factors:

• Sensor type: PI detectors generally offer deeper penetration compared to VLF detectors.
• Operating frequency: Lower operating frequencies typically penetrate deeper but may be less sensitive to smaller objects.
• Ground mineralization: Highly mineralized ground can attenuate the detector’s signal and reduce detection depth.
• Object size and composition: Larger metal objects are generally easier to detect at greater depths compared to smaller objects.

Accuracy and precision

The accuracy of a drone metal detector is defined as its capacity to correctly identify the presence of metal. Precision can be defined as the ability to accurately determine the location of the detected metal object with a high degree of accuracy. While drone metal detectors typically provide good accuracy, factors such as ground conditions and sensor limitations can affect precision. More sophisticated systems may integrate supplementary sensors or advanced data processing techniques to improve precision.

Applications of Drone Metal Detectors

Drone metal detectors offer a versatile tool for various applications across diverse fields:

Archaeology and historical research

Drone metal detectors can be used to survey large areas quickly and efficiently, aiding in the identification of potential archaeological sites and buried artifacts. This technology can minimize ground disturbance and expedite archaeological surveys.

Land mine detection and clearance

The use of drone-based metal detection represents a safer and more efficient method for landmine detection than traditional manual techniques. The method allows for the rapid surveying of extensive areas, facilitating the identification of potential threats and enabling their safe removal by specialized teams.

Geological surveys and mineral exploration

The deployment of metal detectors on unmanned aerial vehicles (UAVs) can facilitate the identification of regions exhibiting indications of mineral deposits. This technology can be employed for preliminary exploration and resource mapping, thereby directing subsequent ground-based investigations.

Construction and utility mapping

The deployment of drone metal detectors represents a valuable tool for the identification of buried pipes, cables, and other underground utilities prior to the commencement of construction projects. Such measures assist in the prevention of inadvertent damage to subterranean infrastructure and guarantee the safety of personnel.

Environmental monitoring

Drone metal detectors can be used to identify and locate potential sources of environmental pollution, such as buried containers of hazardous materials. This technology can aid in environmental cleanup efforts and monitoring programs.

Read Also: Unleashing the Potential of Controlled Environment Agriculture (CEA)

Advantages of Drone-Based Metal Detection

Drone-based metal detection offers several advantages over traditional ground-based methods:

Increased safety in hazardous areas

Drones can be used to survey areas that may be dangerous or inaccessible to humans, such as minefields or contaminated sites. This minimizes the risk of injuries to personnel involved in metal detection operations.

Improved efficiency and coverage

Drones can cover large areas quickly and efficiently compared to manual surveying methods. This allows for faster identification of potential targets and reduces the time required for metal detection surveys.

Cost-effectiveness

While the initial investment in drone metal detection systems may be higher than traditional methods, the efficiency gains and reduced manpower requirements can lead to cost savings in the long run.

Limitations and Challenges

Despite the advantages, drone metal detectors also face some limitations and challenges:

• Payload limitations: Drone payload capacity restricts the size and weight of the metal detector sensor that can be integrated. This may limit the detection depth or sensor capabilities compared to ground-based systems.
• Weather dependence: Wind, rain, and other weather conditions can affect the performance of drone metal detectors. Strong winds can impact flight stability, while rain or moisture can attenuate the detector’s signal.
• Regulatory restrictions: The use of drones for metal detection may be subject to regulations in certain regions. Obtaining necessary permits and adhering to airspace restrictions is crucial for operating drone metal detection systems.
• Data processing and interpretation: The data collected by drone metal detectors requires processing and analysis to identify potential targets. Expertise in metal detector operation and data interpretation is necessary for accurate identification and location of potential metal targets.
• False positives: Metal detectors, including drone-based systems, can generate false positives due to factors like ground mineralization or interference from other metallic objects. Ground-truthing and verification may be necessary to confirm the presence and nature of detected targets.

Conclusion

The advent of drone metal detectors marks a substantial advance in the domain of metal detection. The integration of established metal detection principles with the versatility of drone technology offers a safer, faster, and more efficient method for metal detection across various applications. As drone technology continues to evolve and sensor capabilities improve, it is reasonable to anticipate a broader adoption of drone metal detectors across a range of sectors, with the potential to transform the way metal objects of interest are searched for and located.
